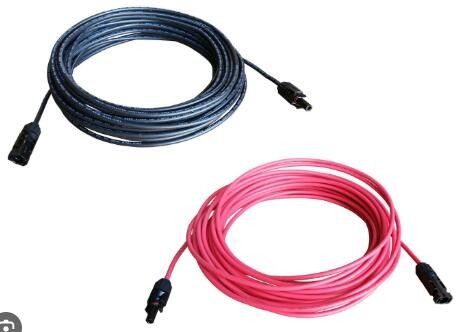

PVC Insulation Flame Retardant Solar Panel Cable Pv Extension Cables 6500V

  • PVC Insulation Flame Retardant Solar Panel Cable Pv Extension Cables 6500V
Place of Origin Beijing, China
Brand Name HTONETECH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bending Radius Ø < 12mm: 3XD; Ø≤12mm: 4XD Apply Provide A Reliable Connection For Solar Panels
Installation Temperature -30/0 + 120 °C Jacket PE
Insulation Material PVC Name Solar Panel Cable
Color Black/red Keyword Pv Cable
Highlight

Flame Retardant Solar Panel Cable

,

PVC Insulation Solar Panel Cable

,

Pv Extension Cables 6500V
Leave a Message
Product Description

Black/Red Solar Panel Cable Tinned Copper Stranded Conductor 6500V

Product Description:

Solar Panel Cable is a single core PV cable that is suitable for flexible solar panel connections. The cable is made of PVC insulation material and Polyolefin (flame retardant) insulation, with a nominal section of 4 Mm2/6 Mm2. It is highly flexible and has superior performance in terms of current-carrying capacity and temperature resistance. This cable is suitable for a wide range of applications, including photovoltaic power systems, solar panel installations, and other applications that require high-performance and reliable power transmission. The cable is designed to provide superior electrical performance and features excellent weather-resistance and UV protection, making it an ideal choice for long-term outdoor use. It is a cost-effective and reliable solution for all your solar panel needs.



Features:

This cable is a 4sqmm square single core photovoltaic cable constructed with copper wire structure. Its rated current is 55A, conductor resistance is 5.09Ω/km, and it has a reference short-circuit allowable temperature of 200℃/5S. The nominal cross section is 4mm2 and its conductor has a diameter of 2.60mm with a wall insulating thickness of 0.5mm. The outer diameter of the finished wire is 6.1±0.1mm. It has a rated temperature of -40~﹢90℃, conductor temperature of ﹢120℃, andWorking environment temperature of -40~﹢90℃. The rated voltage is DC:1.8KV, AC U./U:0.6/1KV, and the Working Voltage AC/DC (KV) is 0.6~1.0/1.8. The flame retardant is single vertical burning (IEC60332-1), and the daylight resistance test is HD605/A1. Moreover, it has ozone resistance test according to EN50396, smoke density according to IEC61034, EN50268-2, release of halogen acid according to IEC670754-1 EN50267-2-1. This cable has a service life of over 25 years and a weight of 0.08Kg/m.


Technical Parameters:

Parameter Value
Rated current 55A
Temperature range Ambient + 90 °C Cable 120 °C
Application Provide a reliable connection for solar panels
Name Solar Panel Cable
Nominal section 4 Mm2/6 Mm2
Insulation material PVC
Features Thermal stability, chemical stability, and UV resistance
Color Black/red
Test voltage 6500V
Installation temperature -30/0 + 120 °C


Applications:

Solar panel cable is an essential part of solar power systems, and HTONETECH offers reliable and high performance solar panel cable products. Our solar panel cable is made of tinned copper stranded conductor, and features a jacket of PE that can withstand ambient temperature of +90°C and cable temperature of 120°C. The solar panel cable also offers a bending radius of less than 12mm and 3XD for Ø<12mm, and 4XD for Ø≤12mm, providing a high degree of flexibility. The solar panel cables come in both 4mm2 and 6mm2 nominal sections, making them suitable for a wide variety of applications.

If you are looking for reliable and high-performance solar panel cable, you can’t go wrong with HTONETECH. Our solar panel cables are perfect for solar power systems and provide a great combination of flexibility, durability, and performance. Whether you need 4mm solar panel cable or 6mm solar panel cable, HTONETECH has you covered. Our solar panel cables feature a PE jacket that is designed to withstand extreme temperatures, and can easily handle the rigors of the outdoors.

At HTONETECH, we are committed to providing our customers with the best solar panel cable products. Our solar panel cables are made with the highest quality materials, and are designed to meet the highest standards of performance and reliability. With our flexible solar cable, you can rest assured that your solar power system will be up and running for years to come. So if you’re looking for a reliable and high-performance solar panel cable, look no further than HTONETECH.



Support and Services:

Solar Panel Cable Technical Support and Service

We provide technical support and service for Solar Panel Cable.

  • We provide installation guides and instructions.
  • We provide online tutorials.
  • We provide customer service support.
  • We provide warranty and repair services.
  • We provide replacement parts.
  • We provide technical advice and assistance.

For any further questions or enquiries, please contact us.



FAQ:

Q: What is the brand name of Solar Panel Cable?
A: The brand name of Solar Panel Cable is HTONETECH.
Q: Where is Solar Panel Cable from?
A: Solar Panel Cable is from Beijing, China.
Q: How much does Solar Panel Cable cost?
A: Solar Panel Cable costs $25.00.
Q: What materials are used to make Solar Panel Cable?
A: Solar Panel Cable is made of flame-retardant PVC.
Q: What is the length of Solar Panel Cable?
A: The length of Solar Panel Cable is 2 meters.
