xApplication | All Fields | Condition | New |
---|---|---|---|
Material | Monocrystalline Silicon | Application Level | Class A |
Working Temperature (ºC) | -40~+85 | Rated Battery Working Temperature | 45±2ºC |
Fire-Protection Rating | Class C | Junction Box | Protection Grade IP68 |
Cable | 4.0mm2,900mm | Component Border | Anodic Oxidation |
Transport Package | Wooden Box | Trademark | Htonetech |
Origin | China | Supply Ability | 50000pieces/Year |
Shipping Cost | To Be Negotiated| Freight Cost Calculator | After-sales Service | Yes |
Warranty | 25 Years | Number Of Cells | 1 |
Highlight | 450W Solar Photovoltaic Cell,Solar Photovoltaic Cell Monocrystalline,solar pv cell Home |

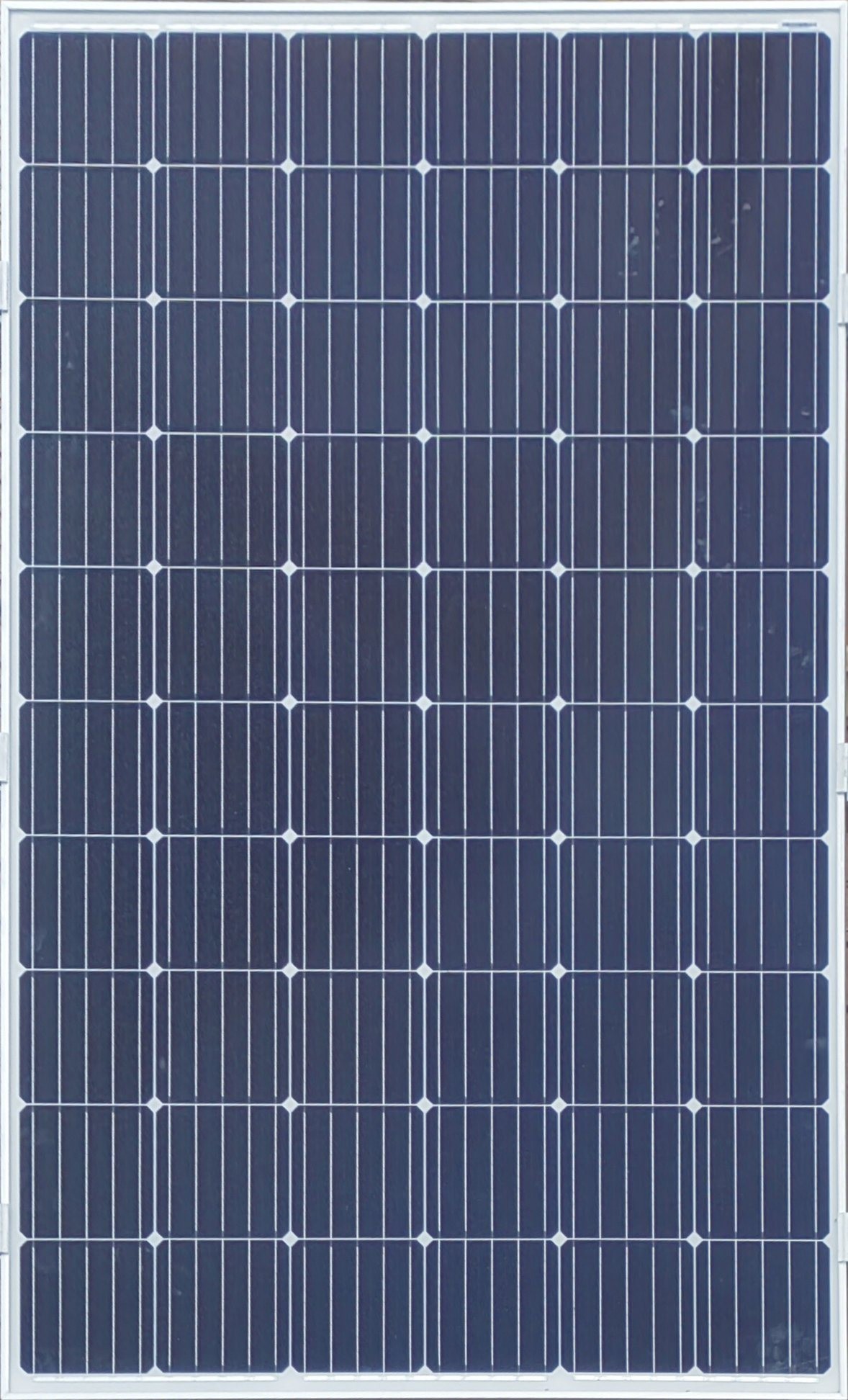

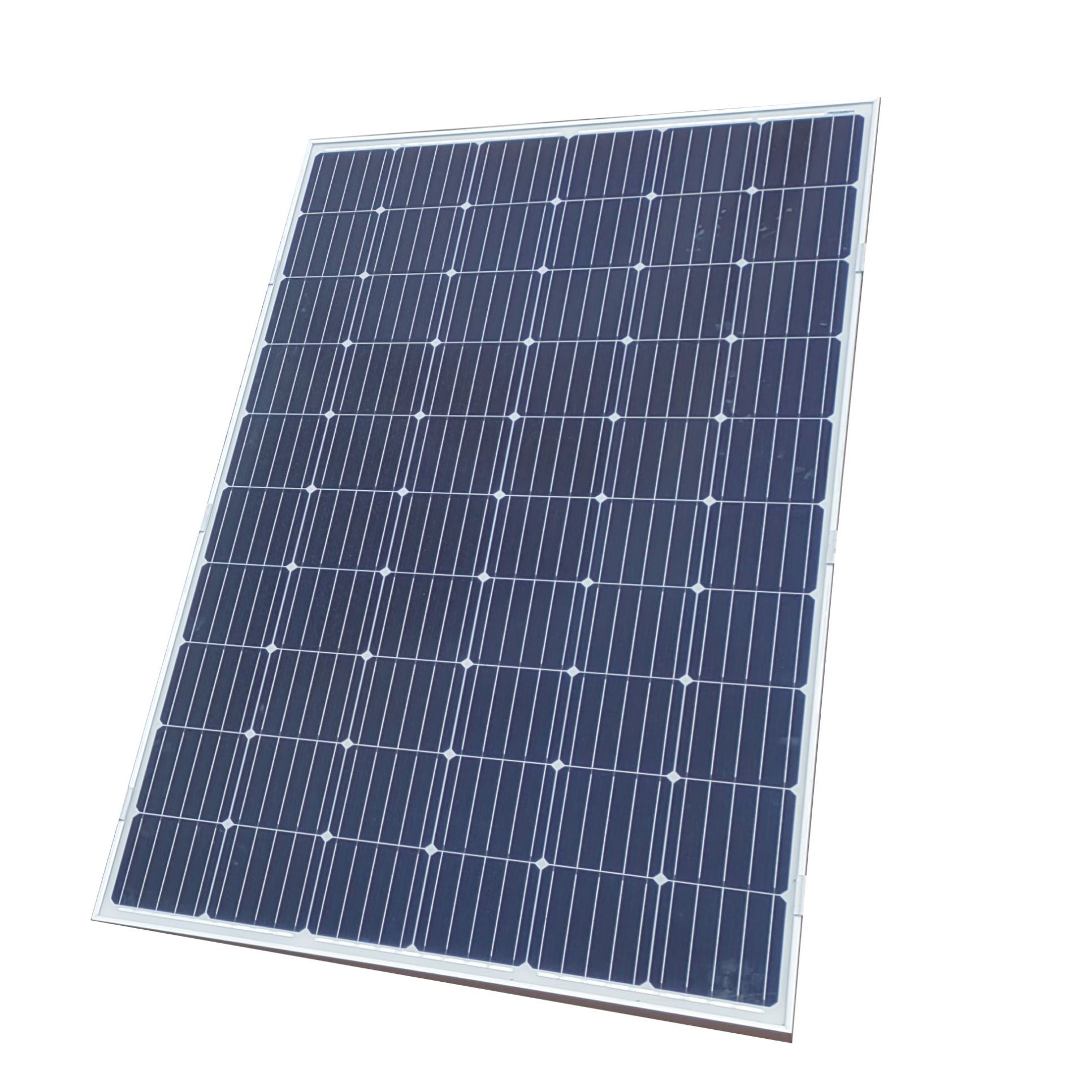

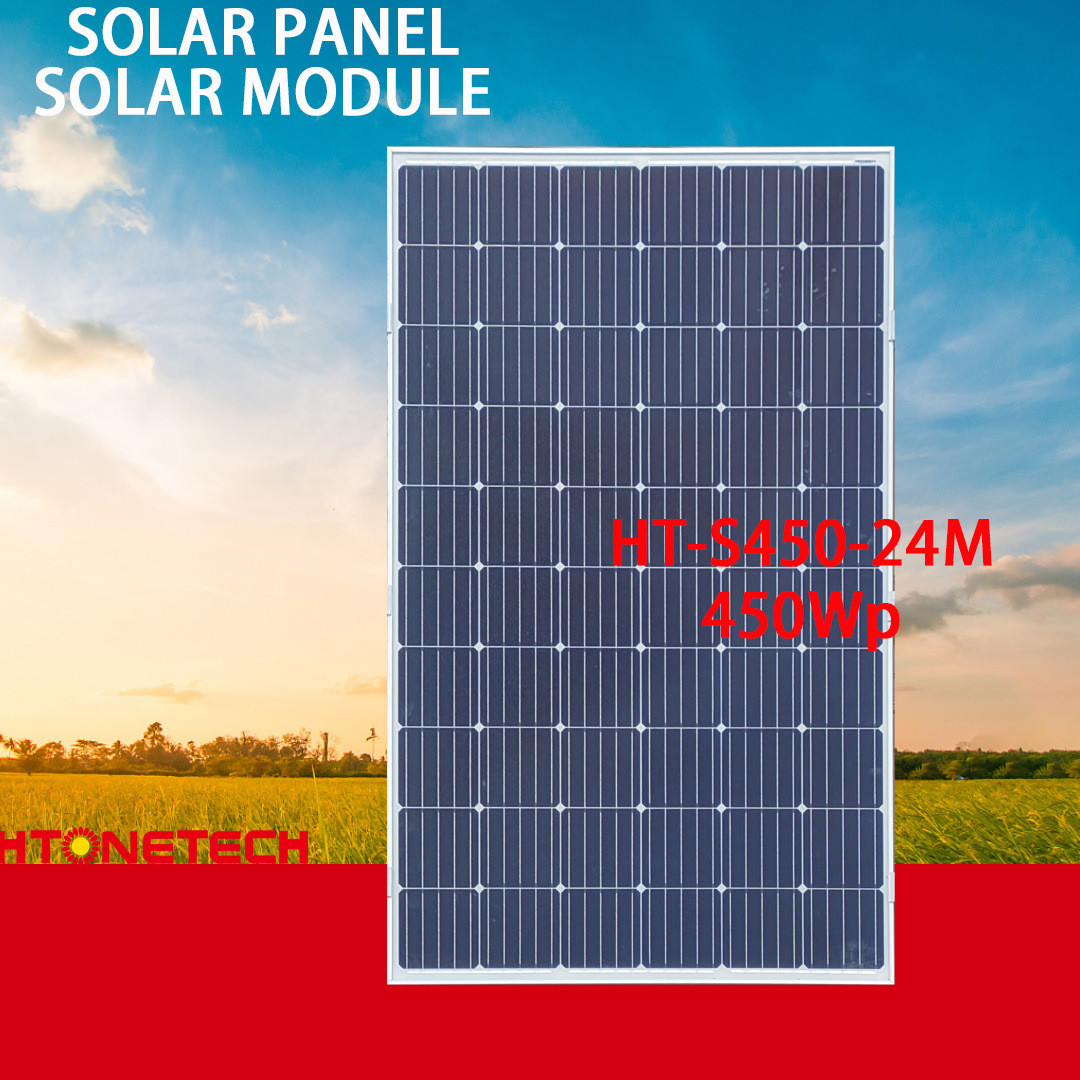

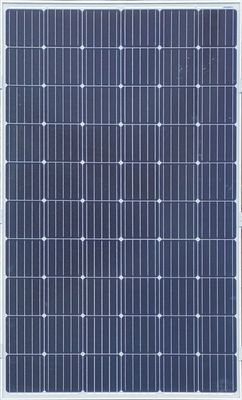

Solar PV Panel 450W Module Photovoltaic Monocrystalline Silicon Polycrystalline System Panels for Home
Product Description
A 450W solar photovoltaic (PV) cell refers to an individual solar cell with a power rating of 450 watts. Solar cells are the basic building blocks of solar PV panels, and they are responsible for converting sunlight into electricity. Here are some key points about a 450W solar PV cell:
- Power Output: The power output of a solar cell is measured in watts (W) and indicates the amount of electricity the cell can produce under standard test conditions (STC). A 450W solar cell has a higher power rating compared to standard residential or commercial solar panels, which typically range from 200W to 400W.
- Efficiency: Solar cell efficiency refers to the ability of the cell to convert sunlight into electricity. Higher efficiency cells can generate more electricity for a given amount of sunlight. The efficiency of a 450W solar PV cell can vary depending on the technology used, such as monocrystalline or polycrystalline silicon, or thin-film materials. Monocrystalline cells generally have higher efficiencies compared to other types.
- Size and Construction: The physical size of a solar cell can vary depending on the manufacturer and technology. A 450W solar cell may have larger dimensions compared to standard cells due to the increased power output. The construction of the cell typically involves a semiconductor material, such as silicon, with layers that facilitate the photovoltaic effect.
- Applications: A 450W solar PV cell can be used in various applications, including residential, commercial, and utility-scale solar installations. They can be integrated into solar panels or used in custom-designed systems, depending on the specific requirements and energy needs.




Model | Peak power(WP) | Peak Voltage(V) | Peak Current(A) | Short circuit current (A) | Open circuit voltage (V) | Size |
HT-S150-24M | 150 | 18 | 8.33 | 8.99 | 22.5 | 1480X670X35 |
HT-S200-24M | 200 | 36 | 5.56 | 6.01 | 44.8 | 1580X808X35 |
HT-S250-24M | 250 | 30 | 8.33 | 8.99 | 36.8 | 1640X992X40 |
HT-S275-24M | 275 | 30 | 9.17 | 9.81 | 37.2 | 1640X992X40 |
HT-S300-24M | 300 | 30 | 10 | 10.7 | 37.2 | 1650X992X35 |
HT-S330-24M | 330 | 36 | 9.17 | 9.81 | 44.64 | 1956X992X40 |
HT-S430-24M | 430 | 40.3 | 10.67 | 11.22 | 48.7 | 2102X1040X35 |
HT-S450-24M | 450 | 41.0 | 10.98 | 11.53 | 49.6 | 2102X1040X35 |
Maximum power Pmp temperature coefficient | =-0.35%/ºC | |||||
The open-circuit voltage Voc | =-0.28%/ºC | |||||
temperature coefficient Short-circuit current | 0.048%/"ºC | |||||
Component border | anodic oxidation | |||||

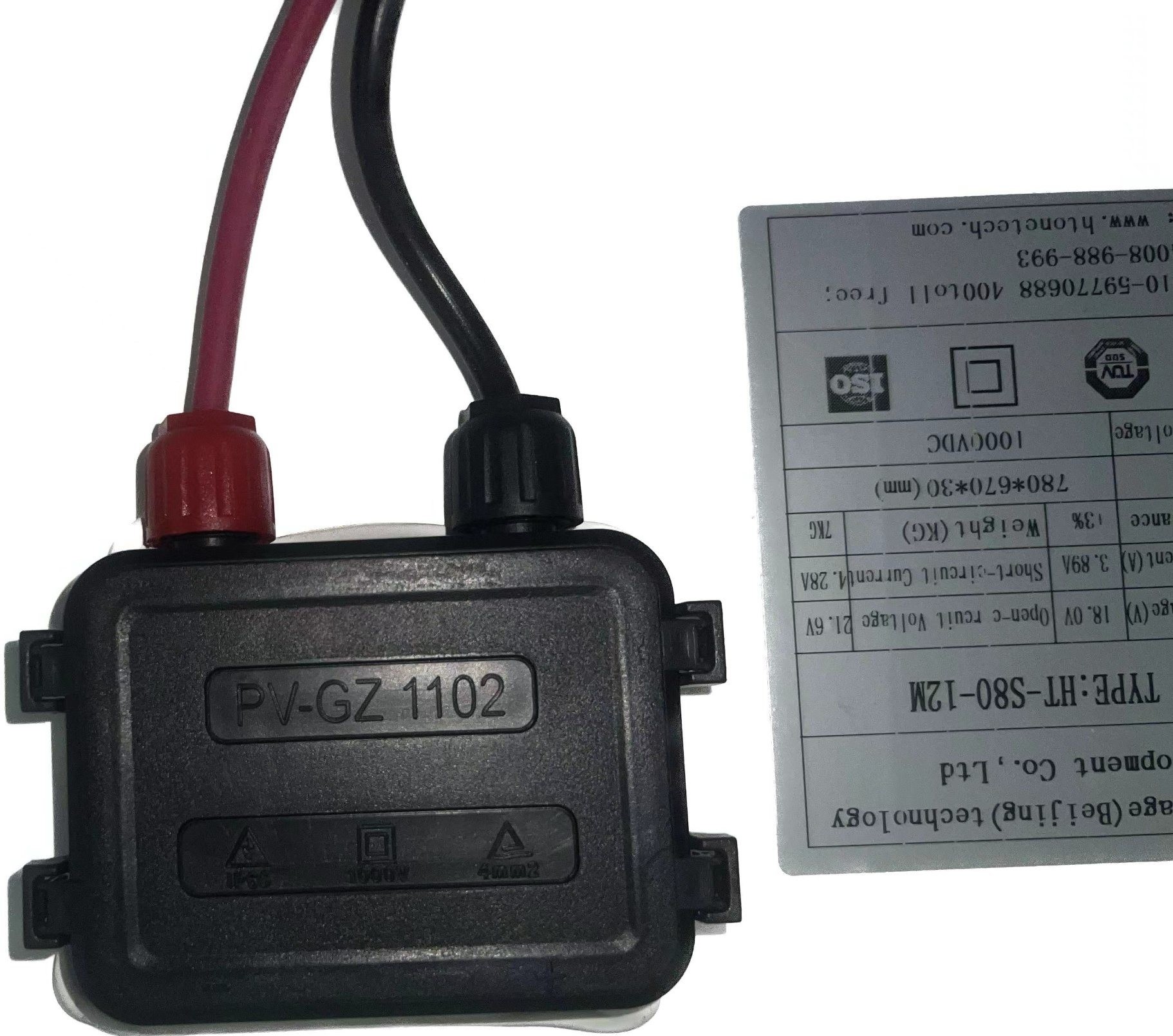

Junction box | Protection grade IP68 | |||||
cable | 4.0mm2,900mm | |||||
working temperature (ºC) | -40~+85 | |||||
Application level | Class A | |||||
fire-protection rating | Class C | |||||
Rated battery working temperature | 45±2ºC |





FAQ
A :We are a professional Solar Panels Manufacturer in China
2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems
4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.
5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
