IP68 Solar Photovoltaic Panel Polycrystalline Monocrystalline Silicon

Certification ISO, CE

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. HT-S50-24M Application All Fields
Condition New Material Monocrystalline Silicon
Application Level Class A Working Temperature (ºC) -40~+85
Rated Battery Working Temperature 45±2ºC Fire-Protection Rating Class C
Junction Box Protection Grade IP68 Cable 4.0mm2,900mm
Component Border Anodic Oxidation Transport Package Wooden Box
Trademark Htonetech Origin China
Supply Ability 50000pieces/Year Shipping Cost To Be Negotiated| Freight Cost Calculator
After-sales Service Yes Warranty 25 Years
Number Of Cells 1
Highlight

IP68 Solar Photovoltaic Panel

,

Solar Photovoltaic Panel Polycrystalline

,

photovoltaic panels Monocrystalline Silicon

Leave a Message
Product Description

Solar Photovoltaic Panel, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System

Product Description



Solar photovoltaic (PV) panels have a wide range of applications across various sectors. Here are some common applications of solar PV panels:

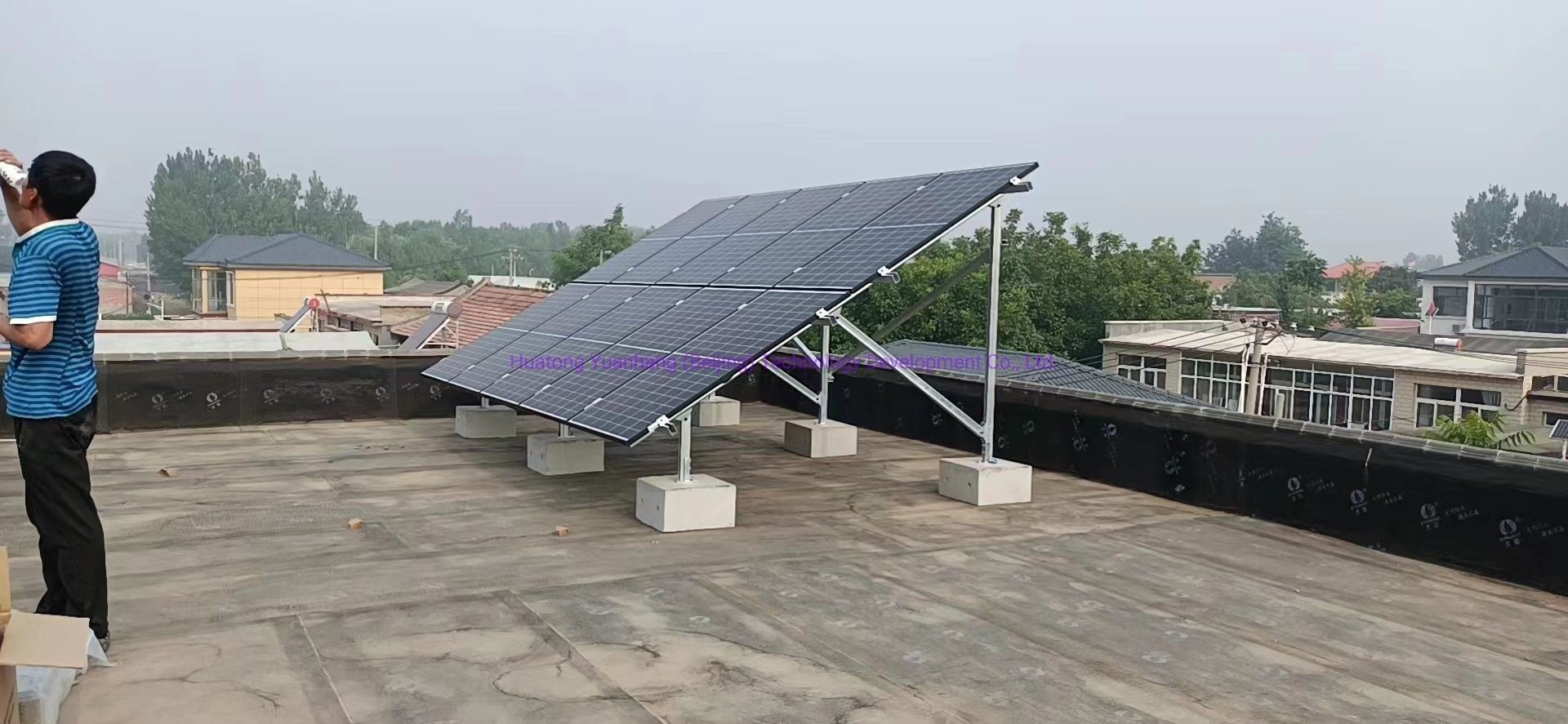

Residential Solar Power: Solar panels are commonly installed on residential rooftops to generate electricity for homes. They can power household appliances, lighting, heating and cooling systems, and other electrical devices. Excess energy can be fed back to the grid or stored in batteries for later use.

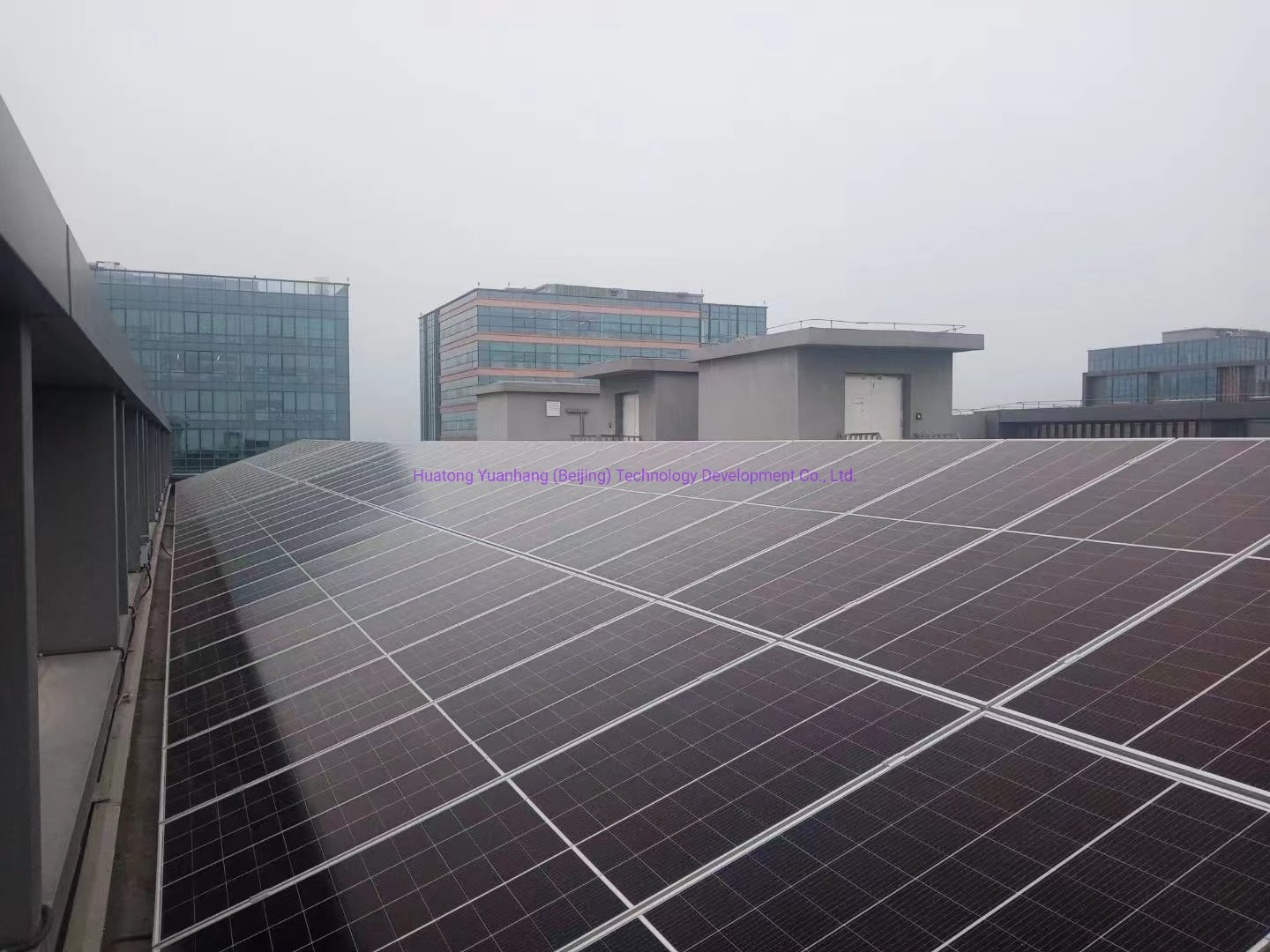

  • Commercial and Industrial Buildings: Solar PV panels are installed on commercial and industrial buildings to offset energy consumption and reduce electricity costs. Large rooftop or ground-mounted installations can provide significant energy savings for businesses, factories, warehouses, and office complexes.
  • Utility-Scale Solar Power Plants: Solar PV panels are utilized in utility-scale solar power plants, also known as solar farms or solar parks. These large-scale installations consist of thousands or even millions of solar panels that collectively generate electricity on a utility grid scale. Utility-scale solar power plants contribute to the generation of renewable energy for communities and regions.
  • Off-Grid and Remote Applications: Solar PV panels are ideal for off-grid and remote applications where access to the electrical grid is limited or unavailable. They can power remote cabins, telecommunications equipment, water pumps, agricultural applications, and even provide electricity in disaster-stricken areas.
  • Water Pumping: Solar PV panels are used to power water pumping systems for irrigation, livestock watering, and community water supply. They provide a sustainable and cost-effective solution for areas without reliable access to electricity or where traditional fuel-powered pumps are impractical.
  • Street Lighting: Solar-powered street lighting systems use PV panels to generate electricity for lighting public streets, pathways, and parks. These systems operate autonomously, storing energy during the day and activating the lights at night, eliminating the need for grid connections and reducing energy costs.
Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household Solar Panel solar module 150W 200w 250W 275W 300W 330W 430W 450W Solar PV Solar Panel Kits 5kw High Quality! Solar Energy PV Power
Model Peak power(WP) Peak Voltage(V) Peak Current(A) Short circuit current (A) Open circuit voltage (V) Size
HT-S150-24M 150 18 8.33 8.99 22.5 1480X670X35
HT-S200-24M 200 36 5.56 6.01 44.8 1580X808X35
HT-S250-24M 250 30 8.33 8.99 36.8 1640X992X40
HT-S275-24M 275 30 9.17 9.81 37.2 1640X992X40
HT-S300-24M 300 30 10 10.7 37.2 1650X992X35
HT-S330-24M 330 36 9.17 9.81 44.64 1956X992X40
HT-S430-24M 430 40.3 10.67 11.22 48.7 2102X1040X35
HT-S450-24M 450 41.0 10.98 11.53 49.6 2102X1040X35
Maximum power Pmp temperature coefficient =-0.35%/ºC
The open-circuit voltage Voc =-0.28%/ºC
temperature coefficient Short-circuit current 0.048%/"ºC
Component border anodic oxidation
Junction box Protection grade IP68
cable 4.0mm2,900mm
working temperature (ºC) -40~+85
Application level Class A
fire-protection rating Class C
Rated battery working temperature 45±2ºC

Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household
Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household

FAQ

1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China

2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;

3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems

4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.

5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
